The Guinea Challenge: Why Your Fleet Needs This Trailer？
Guinea sits on some of the world's richest mineral reserves bauxite, iron ore, gold and its mining sector is booming. But getting ore from pit to port remains one of the most punishing logistics operations on the planet.
Here's what mining operators and transport companies face every day in Guinea:
1.Brutal road conditions: Haul roads are unpaved, deeply rutted, and deteriorate rapidly during the rainy season. Standard trailers suffer accelerated structural fatigue, with vehicle lifespans shrinking from 6–9 years to as little as 3 years under these conditions.
2.Extreme payload pressure: With transport costs reaching approximately $1 per ton per kilometer, every additional ton of payload directly translates into profitability. Operators cannot afford to run under-capacity trailers.
3.High humidity and corrosion: Coastal humidity and tropical rainfall relentlessly attack metal surfaces. Trailers that lack proper corrosion protection degrade quickly, increasing maintenance downtime and cost.
4.Long distances with limited infrastructure: Mines in Boké, Kindia, and Kankan regions must transport ore hundreds of kilometers to ports like Kamsar and Conakry. There is no room for breakdowns or inefficient unloading methods.
5.Demand for fast turnaround: Mining operations run 24/7. Queues at dump points cost money. Side-dump capability allows rapid unloading without the space constraints of rear-dump configurations.
The Hualu 5-Axle Side Dump Semi-Trailer is purpose-built to solve these exact problems — delivering a rugged, high-capacity, and fast-unloading solution for Guinea's most demanding mining routes.
Key Features & Selling Points
1.120-Ton Payload Capacity: With five heavy-duty axles distributing load evenly, this trailer maximizes payload per trip — reducing the number of cycles needed and cutting fuel and labor costs per ton transported.
2.Side Dump Mechanism: The hydraulic side-tipping system enables rapid, controlled unloading on either side, ideal for stockpile building, direct loading onto conveyors or barges, and operations in confined dump areas where rear-dump trailers cannot maneuver.
3.Reinforced Frame for Extreme Conditions: The main frame is constructed from high-tensile steel Q345B with a reinforced "I" beam structure (top flange 14mm / web plate 10mm / bottom flange 14mm), specifically engineered to withstand the torsional stress of unpaved, uneven haul roads.
4.Heavy-Duty Axle Configuration: Five axles rated at 16T–20T each provide superior load distribution, reducing ground pressure and minimizing tire wear on soft laterite roads — a critical advantage in Guinea's rainy season.
5.Multi-Stage Hydraulic System: High-performance multi-stage hydraulic cylinders (7+1 configuration) ensure smooth, stable tipping even under full load, with precise control to prevent cargo spillage and maintain trailer stability.
6.Corrosion-Resistant Coating: Full sandblasting treatment with anti-corrosion primer and dual-layer finish paint protects against Guinea's tropical humidity and acidic laterite soil — extending service life significantly.
7.Reinforced Cargo Box: The cargo box features reinforced side panels with hidden square tube bracing and cross-member support, preventing bulging and deformation when hauling dense, abrasive materials like bauxite and iron ore.
8.Wide-Base Tire Configuration: 20+ tires (12R22.5) provide excellent flotation on soft ground, reducing sinkage and improving traction on muddy haul roads.

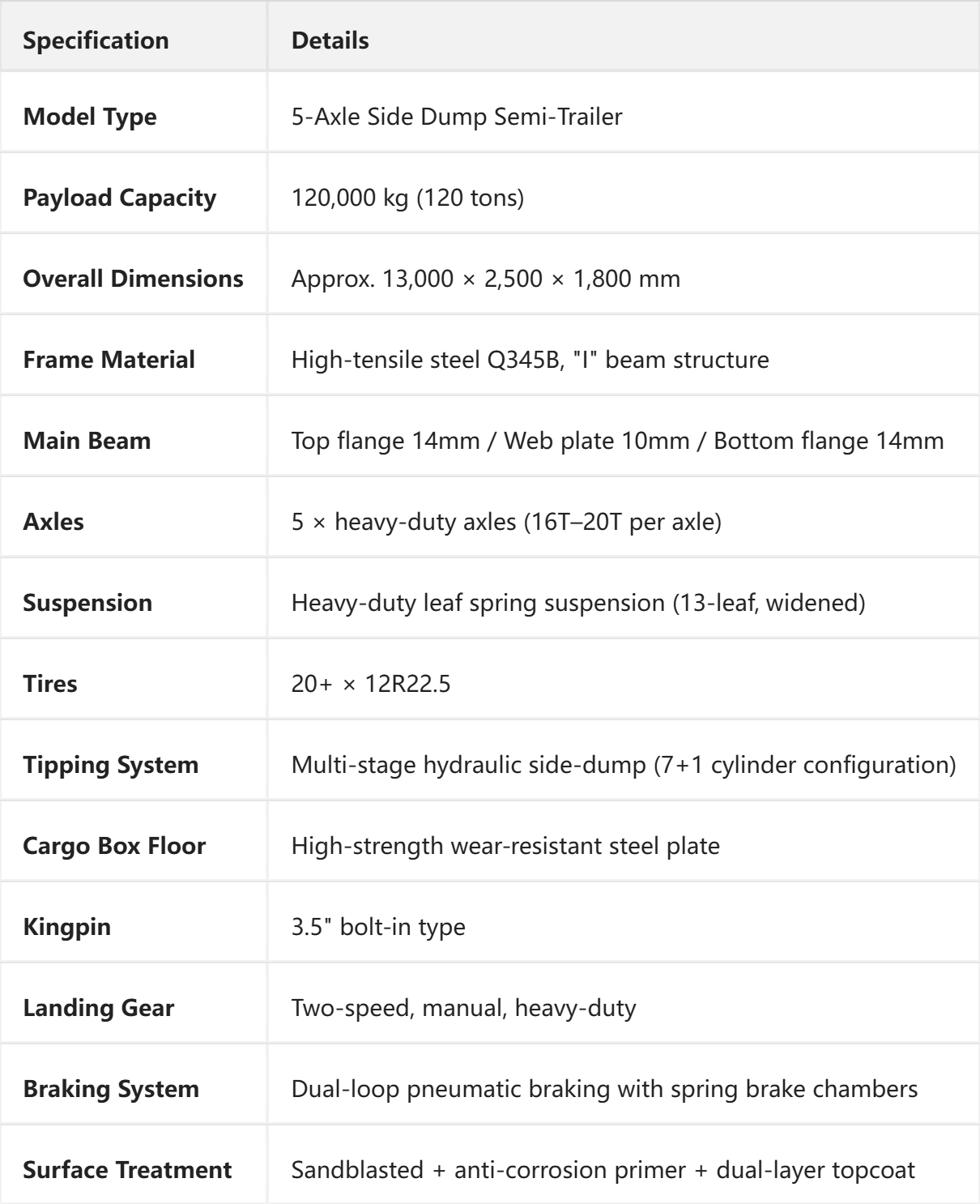

Technical Specifications
Why Hualu for Guinea's Mining Sector?
Every ton that doesn't move is revenue lost. In Guinea's mining corridors, where haul roads eat trailers and humidity destroys steel, you need equipment that fights back. The Hualu 5 Axle Side Dump Semi-Trailer isn't just built to survive these conditions 。 it's built to thrive in them. From the reinforced frame that absorbs punishing road impacts, to the side-dump system that cuts unloading time in half, to the corrosion-resistant coating that stands up to tropical downpours ，every design decision is driven by one goal: keeping your fleet running, your costs down, and your ore moving.
Whether you're hauling bauxite from Boké to Kamsar, iron ore from the Simandou corridor, or construction aggregates across West Africa, Hualu delivers the payload, durability, and performance your operation demands.
Let's move Guinea's minerals — together.
